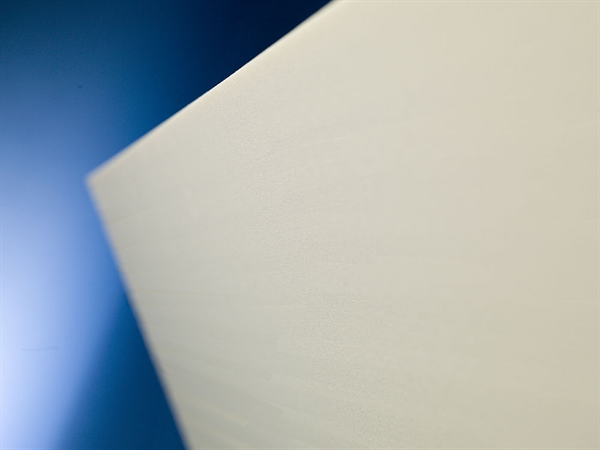

DIAB Divinycell H-60 Perforated Core Sheets

$335.98-$682.98 $201.59-$409.79

Divinycell H has been widely used and has a proven track record in virtually every application area where sandwich composites are employed including the marine, land transportation, wind energy, civil engineering/infrastructure and general industrial markets.

Clear
SKU: N/A Category: Tags: , , ,

Description

DIAB DIVINYCELL PERFORATED H-60 CORE – Divinycell H provides excellent mechanical properties to low weight. The unique IPN chemical structure, yields impressive mechanical performance to a low weight. Divinycell H has been widely used and has a proven track record in virtually every application area where sandwich composites are employed including the marine (leisure, military and commercial), land transportation, wind energy, civil engineering/infrastructure and general industrial markets. Divinycell H is ideal for applications subject to fatigue, slamming or impact loads. Other key features of Divinycell H include consistent high quality, excellent adhesion/peel strength,  excellent chemical resistance, low water absorption and good thermal/acoustic insulation. Divinycell H is compatible with virtually all  commonly used resin and manufacturing systems. Sheets are Perforated to allow resin flow. Product is sold by the individual 4′ x 8′ sheet. Sheet Area: 32 S.F./Sht. 4 lb. Density.

NOTE: Perforations consist of 0.125″ perforations on a 4″ square pattern with 1 hole in the middle.

PRODUCT CHARACTERISTICS

  • Low water absorption
  • Superior damage tolerance
  • Fast and easy to process
  • Good chemical resistance
  • Excellent fatigue properties
  • Low resin uptake
  • Wide range of properties
  • Provides excellent mechanical properties to a low weight

LOOKING FOR CASE QUANTITIES – CALL FOR SPECIAL OEM PRICING
H-60PF 5/8″ – 20 sheets in a case
H-60PF 3/4″ – 15 sheets in a case
H-60PF 1″ – 12 sheets in a case
H-60PF 1.5″ – 8 sheets in a case

SHIPPING NOTE: THE CHARGES CALCULATED AT CHECKOUT ARE NOT CORRECT FOR THIS ITEM.  UPS DOES NOT SHIP OVERSIZED MATERIAL.  YOUR SHIPPING CHARGE WILL BE RECALCULATED BEFORE PRODUCT IS RELEASED.  IT IS EASIEST IF YOU CALL FOR A SHIPPING QUOTE!  THANKS FOR YOUR UNDERSTANDING.

LINKS:

To view the PDS for Divinycell H Foam: CLICK HERE

Additional information

Weight N/A
Dimensions N/A
Size

5/8", 3/4", 1", 1.5"
